This document describes the details of ECDSA256V-IP reference design. In this reference design, ECDSA256V-IP is used to verify digital signatures signed with NIST P-256 curves. Users can verify a signature with input required parameters, test compliance with NIST test vectors and verify SSL certificate as real-life application. More details of the hardware design and CPU firmware are described as follows.

1 Hardware

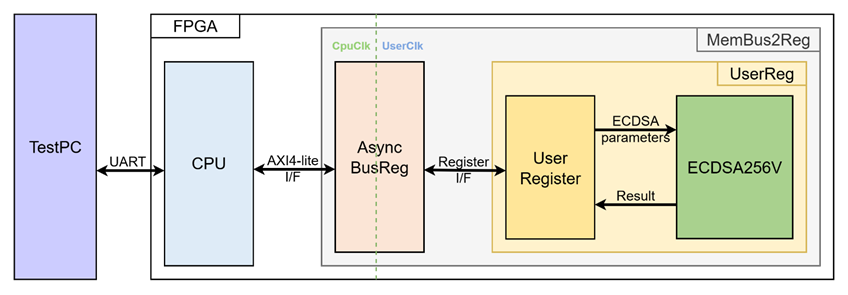

Figure 1 ECDSA256V-IP reference design block diagram

In this test environment, the CPU system is designed to interface with the user through a serial console on the test PC and with the FPGA logic through a memory-mapped bus (AXI4-Lite). The MemBus2Reg module translates the memory-mapped bus transactions into a simple register interface using AsyncBusReg.

Within the UserReg module, the ECDSA256V-IP connects to user register that provide the ECDSA parameters, control signals and status/result output for the verification process, as shown in Figure 1.

Since the CPU system and the ECDSA256V-IP operate in different clock domains, the AsyncBusReg module inside MemBus2Reg is implemented as an asynchronous circuit to support clock domain crossing.

The details of each hardware module are described in the following sections.

1.1 MemBus2Reg Module

The MemBus2Reg module interfaces with the CPU through a memory-mapped bus, such as AXI4-Lite. The hardware registers within MemBus2Reg are mapped to specific CPU memory addresses, as shown in Table 1. These registers include control and status registers that enable the CPU to access and manage the module.

MemBus2Reg consists of two main sub-modules: AsyncBusReg and UserReg. The AsyncBusReg sub-module is responsible for converting the signals from the memory-mapped bus into a simple register interface that uses a 32-bit data bus, maintaining consistency with the bus’s data size. As shown in Figure 1, the MemBus2Reg module operates with two clock domains: CpuClk, which interfaces with the CPU, and UserClk, which operates in the user-defined clock domain. The AsyncBusReg sub-module includes circuitry to handle asynchronous communication between these two clock domains.

UserReg includes the register file of the parameters and the status signals of test logics. Both data interface and control interface of ECDSA256V-IP are connected to UserReg. More details of AsyncBusReg and UserReg are described as follows.

1.2 AsyncBusReg

This module is designed to convert the signal interface of a memory-mapped bus into a register interface. Also, it enables two clock domains, CpuClk and UserClk domain, to communicate.

To write register, RegWrEn is asserted to ‘1’ with the valid signal of RegAddr (Register address in 32-bit unit), RegWrData (write data of the register), and RegWrByteEn (the byte enable of this access: bit[0] is write enable for RegWrData[7:0], bit[1] is used for RegWrData[15:8], …, and bit[3] is used for RegWrData[31:24]).

To read register, AsyncBusReg asserts RegRdReq=‘1’ with the valid value of RegAddr (the register address in 32-bit unit). After that, the module waits until RegRdValid is asserted to ‘1’ to get the read data through RegRdData signal at the same clock as shown in Figure 2.

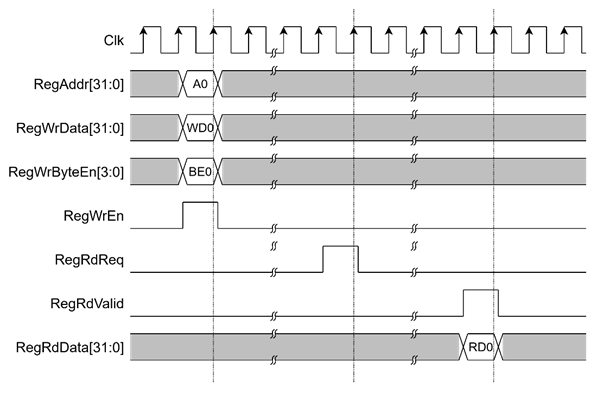

Figure 2 Register interface timing diagram

1.3 UserReg

This module is designed for setting the ECDSA parameters providing control signal and monitoring the status and result of the ECDSA256V-IP corresponding with write register access or read register request from AsyncBusReg module. The memory map of UserReg module is shown in Table 1.

Table 1 Register map Definition

Address offset	Register Name	Rd/Wr	Description
0x0000	ECDSA_VERSION_REG	Rd	[31:0] – ECDSA256V-IP version (wVersion).
0x0004	ECDSA_RESETB_REG	Rd	[0] – Active low reset signal for ECDSA256V-IP (rECDSARstB).
0x0010	ECDSA_START_REG	Rd	[0] – Busy status of ECDSA256V-IP (rBusy)
0x0010	ECDSA_START_REG	Wr	[0] – Start signal for ECDSA256V-IP (rStart)
0x0014	ECDSA_RESULT_REG	Rd	[0] – Verification result (rResult).
0x0020- 0x003F	ECDSA_Qx_0_REG- ECDSA_Qx_7_REG	Rd/Wr	[31:0] – Public key x-coordinate (little-endian) (rQx).
0x0040- 0x005F	ECDSA_Qy_0_REG- ECDSA_Qy_7_REG	Rd/Wr	[31:0] – Public key y-coordinate (little-endian) (rQy)
0x0060- 0x007F	ECDSA_R_0_REG- ECDSA_R_7_REG	Rd/Wr	[31:0] – r component of signature (little-endian) (rR)
0x0080- 0x009F	ECDSA_S_0_REG- ECDSA_S_7_REG	Rd/Wr	[31:0] – s component of signature (little-endian) (rS)
0x00A0- 0x00BF	ECDSA_HASH_0_REG- ECDSA_HASH_7_REG	Rd/Wr	[31:0] – Message digest (little-endian) (rHash)

For ECDSA parameter configuration, the x-coordinate of the public key is written to the registers ECDSA_Qx_7_REG through ECDSA_Qx_0_REG. The same procedure applies to the y-coordinate of the public key, the signature components r and s, and the message digest, as illustrated in Figure 3.

To start the verification process, the CPU writes to ECDSA_START_REG, which asserts rStart for one clock cycle. The ECDSA_START_REG can also be read to monitor the rBusy status. Once wBusy is de-asserted, the verification result can be obtained by reading ECDSA_RESULT_REG as illustrated in Figure 4.

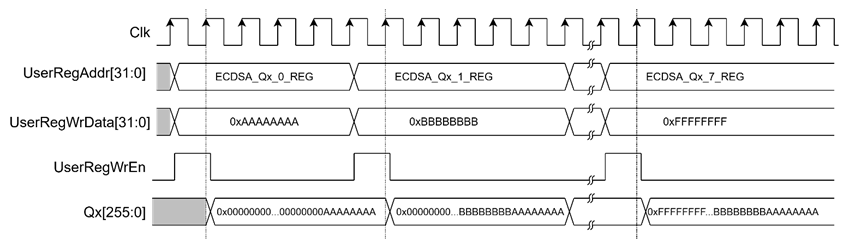

Figure 3 Timing diagram of ECDSA parameter configuration

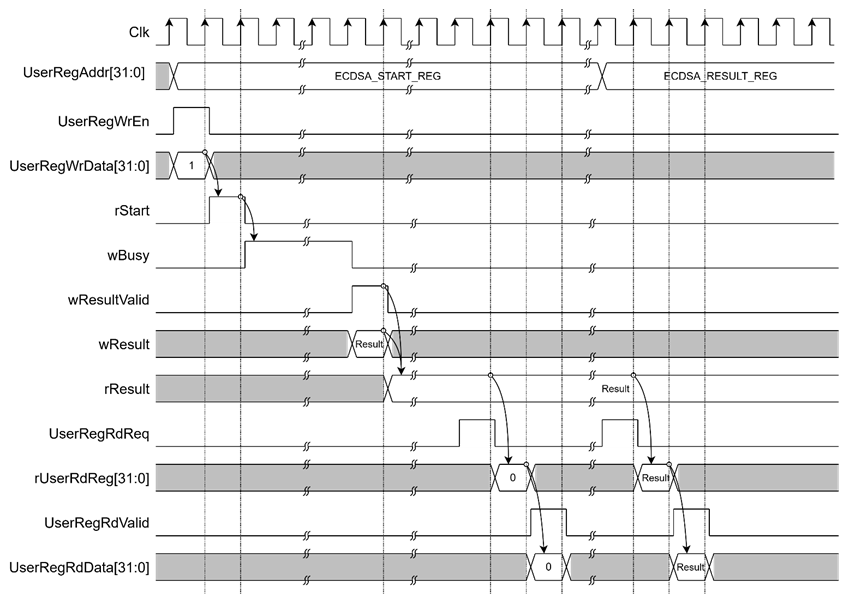

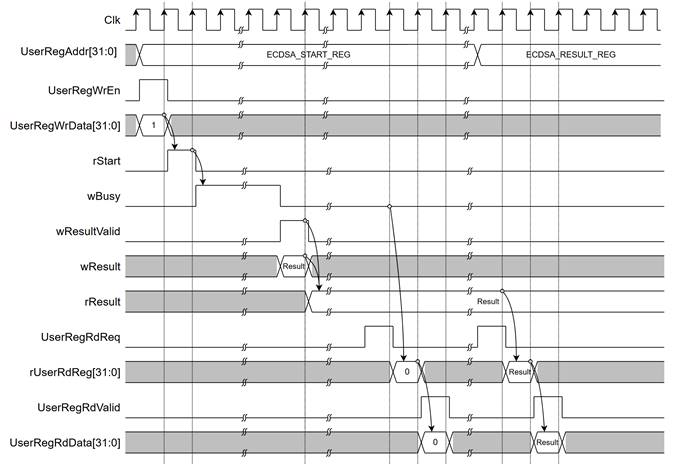

Figure 4 Timing diagram of verification process

2 CPU Firmware

After system boot-up, CPU initializes its peripherals such as UART and Timer a shows IP version of ECDSA256V-IP. Then main menu is displayed. Main function runs in an infinite loop to show the main menu and get keyboard input from user. User can select each menu via serial console that will call the related functions. After functions finished running, the main menu is displayed again. More details of the sequence in each menu are described as follows.

2.1 Test with Custom ECDSA Parameters

This menu is used to verify an ECDSA signature by entering user-provided ECDSA parameters. Five parameters are required in this mode: x- and y-coordinates of the public key (Qx, Qy), the signature components (r, s), and the message digest (hash). Each parameter is set individually using the set_256bit_register function, as described in Table 2. After all parameters are configured, the ecdsa_verify function is called to initiate the ECDSA256V-IP, monitor its status, and report the verification result through the serial console. The detail of ecdsa_verify() function is provided in Table 3.

Table 2 set_256bit_register function

void set_256bit_register(unsigned int start_addr, char label)
Parameter	start_addr: Pointer to the register address where the parameter will be written. label: Name of the signal associated with the parameter.
Return value	None
Description	This function displays the current parameter value on the console and prompts the user for input. A new parameter can be entered in hexadecimal format, or the user may press ENTER to skip and keep the existing value. If the input is not in hexadecimal format, it will be ignored. Once valid input is received, the function waits until the busy status is cleared, and then writes the new value to the specified registers.

Table 3 ecdsa_verify function

int ecdsa_verify(void)
Parameter	None
Return value	1: Signature is valid. 0: Signature is invalid -1: Error occurred
Description	This function initiates the ECDSA256V-IP to verify a signature using the currently set parameters. It continuously monitors the busy status until the operation completes. If a timeout occurs during the process, the function returns -1. Otherwise, it returns the verification result (1 for valid or 0 for invalid).

2.2 Test with NIST Test Vector

This menu evaluates the ECDSA256V-IP using standard NIST test vectors in RSP format. Input is received line by line from the user via the serial console, with each line processed upon detecting a carriage return (“\r”). If no input is received for 100 ms, the function terminates. Each line of input is interpreted according to the RSP format.

This function consists of four main steps:

1) Check RSP File Type – Reads the file header comment and verify whether the curve/hash group is supported.

2) Parse Test Cases – Extracts ECDSA parameters and expected verification results from the RSP file. Since the messages in the NIST test vectors are not pre-hashed, the software hashes each message before storing it as a test case parameter.

3) Run Verification – Configures the ECDSA parameters for each test case, call the ecdsa_verify() function, and compare the actual result with the expected one.

4) Display Summary – Presents the results in a test summary table.

2.3 Test with SSL Certificate

This menu is used to verify SSL certificates in .p7b format. The process works as follows:

1) Receive certificate input – The cert_read_hex_from_uart function is called to receive the certificate from the user via the serial console (see Table 4).

2) Parse certificate chain – The parse_chain_cert function extracts individual certificates from the .p7b format and stores the parsed results in the user_chain_cert structure (see Table 5).

3) Verify each certificate – If the certificate uses ECDSA-with-SHA256, the public key (in uncompressed format) and signature are extracted. The ECDSA parameters are then configured as inputs, and the ECDSA256V-IP is called to perform the verification. The result is recorded.

4) Display verification results – The verification result of each certificate is displayed on the serial console.

Table 4 cert_read_hex_from_uart function

int cert_read_hex_from_uart(char *buffer, int max_len, int timeout_ms)
Parameter	buffer: pointer of the char array that stores the certificate chain max_len: maximum certificate length allowed timeout_ms: timeout threshold in millisecond
Return value	Certificate length
Description	This function receives the certificate from user via serial console. It terminates when either the complete length (as specified in the .p7b header) is received, or when no input is received for longer than the timeout_ms threshold.

Table 5 parse_chain_cert function

int parse_chain_cert(unsigned char hex_data, CertParams chain_cert)
Parameter	hex_data: certificate chain data in hex format chain_cert: certificate structure to store parsed information
Return value	Number of certificates in the chain
Description	This function separates individual certificates in the chain and parses their information fields in .p7b format. The parsed information is stored in the chain_cert structure, including issuer, validity, subject, subjectPublicKeyInfo, algorithmIdentifier and signature.

3 Revision History

Revision	Date (D-M-Y)	Description
1.00	10-Oct-25	Initial version release
