SerialATA IPcore(for Altera)

Support SATA3

SerialATA(SATA)IPcore provides link layer to implement SATA channel to Altera FPGA and work on StratixIV GX, ArriaII GX and CycloneIV GX device. For StratixIV GX, it supports SATA-III (6Gbps) and matchs with SATA-III SSDs. It can connect with SSD/HDD without PHY chip. You can develop your product in a short period because the IP core product includes the reference design with source code designed for Altera FPGA development kit.

　 Design Gateway also provides SATA-IP for Xilinx Go to SATA-IP <for Xilinx>

Features of SerialATA-IPcore

• Compliant with the Serial ATA specification revision 3.0 (for StratixIV GX)
• Support both of SATA Host and SATA Device (Applicable to SATA Peripheral development)
• Simple transaction interface with Host processor or DMA Engine
• 32-bit internal data path
• 4KB FIFO implemented by BlockRAM in transmit and receive paths
• Support SATA-II/III (SATA-III for StratixIV GX. support ArriaII GZ soon)
• Low frequency operation
  - IP Core clock 75.0MHz and PHY clock 150MHz for SATA-II
  - IP Core clock 150.0MHz and PHY clock 300MHz for SATA-III (StratixIV GX)

• CONT primitive support for continue primitive suppression to reduce EMI
• Support 20bit width PHY
• Able to evaluate on StratixIV GX, ArriaII GX or CycloneIV GX FPGA development kit before purchasing the IPcore

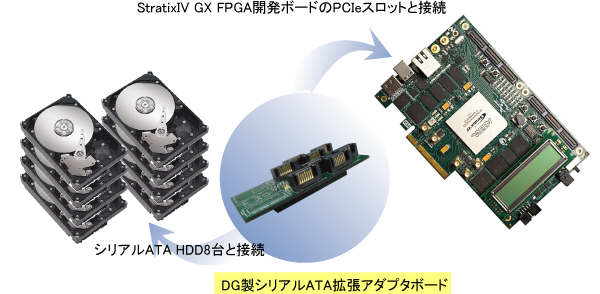

  ※HSMC-SATA adaptor board(AB11-HSMCSATA) is required.
  ※NIOS II is required.
  Ask time rimited evaluation sof file
