USB3.0 IPcore
SuperSpeed 5Gbps!!
USB3.0-IPcore compliants with the USB 3.0 specification Revision1.0 and work on Xilinx Spartan-6 and Virtex-6 device.
This IPcore provide link layer and protocol layer. Physical layer interfaces to PHY chip by TI.
DesignGateway provide 1-hour limited bit file for Xilinx evaluation board.
You can evaluate on ML605 or SP605 board before purchasing the IPcore.
Design Gateway also provides SATA-IP for Altera Go to USB3.0-IP <for Altera>
Features of USB3.0-IPcore
- Compliant with the USB3.0 specification Revision1.0
- USB3.0 Device Contoroller
- Imprement link layer and protocol layer
- Physical layer interfaces to PHY chip by TI
- IP core clocks are adjustable (250MHz for PIPE I/F, more than 125MHz for internal)
- Support 16bit PIPE interface
- Support IN/OUT end point up to 15 points
- 1 point for control
- 7 points each for IN/OUT - Support All transmission taps (Control, Bulk, Isochronous and Interruput transmission)
- Simple transaction interface with Host processor or DMA interface
- Able to evaluate on ML605/SP605 board before purchasing the IPcore Ask the bit file

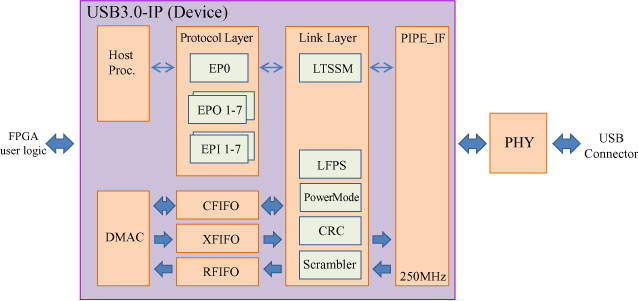

Block diagram of USB3.0-IPcore
 |
Document download
| Document name | Update (Revision) | File name |
| USB3.0-IPcore Leaflet | - | USB3.0-Brief-E.pdf |
| USB3.0-IPcore Presentation | - | USB3D-PRES-E.pdf |
| USB3.0-IPcore Datasheet | - | dg_usb3.0_dev_ip_data_sheet_en.pdf |
| USB3.0-IPcore Reference Design Document | - | dg_usb3.0_dev_ip_refdesign_en.pdf |
| USB3.0-IPcore Demo Instruction Document for SP605 | - | dg_usb3.0_dev_ip_demo_instruction_en.pdf |
Bit file download for evaluation
DesignGateway provide 1-hour limited bit file. You can evaluate USB3.0-IPcore on Xilinx ML605 or SP605 board before purchasing the IPcore. Ask the bit file
Demonstration video clip on youtube.
For the evaluation with SP605 or ML605, USB3.0-FMC adaptor board is necessary.(P/N: AB07-USB3FMC). Please ask Design Gateway.
Performance of USB3.0-IPcore
USB3.0-IPcore can achieve maximum performance of current USB3.0 system.
 |

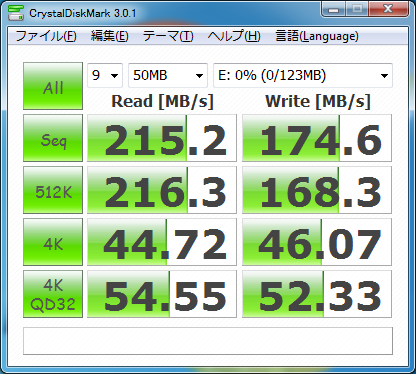

| USB3.0-IPcore evaluation on SP605 (with AB07-USB3FMC adaptor board) |
 USB3.0-IPcore Actual Performance * Evaluated on ASUS P8H61 mother board |
Inquiry/Purchase
| Part Number | Supported Devices |
| Host | |
| - | |
| Device | |
| USB3D-IP002 |
Spartan-6 |
| USB3D-IP003 |
Virtex-6 |
| Accessories for evaluation | Description |
 AB07-USB3FMC |
USB3.0-FMC adaptor board for Xilinx SP605/ML605 USB3.0 TypeAtoA cable(1m) is attached. |
