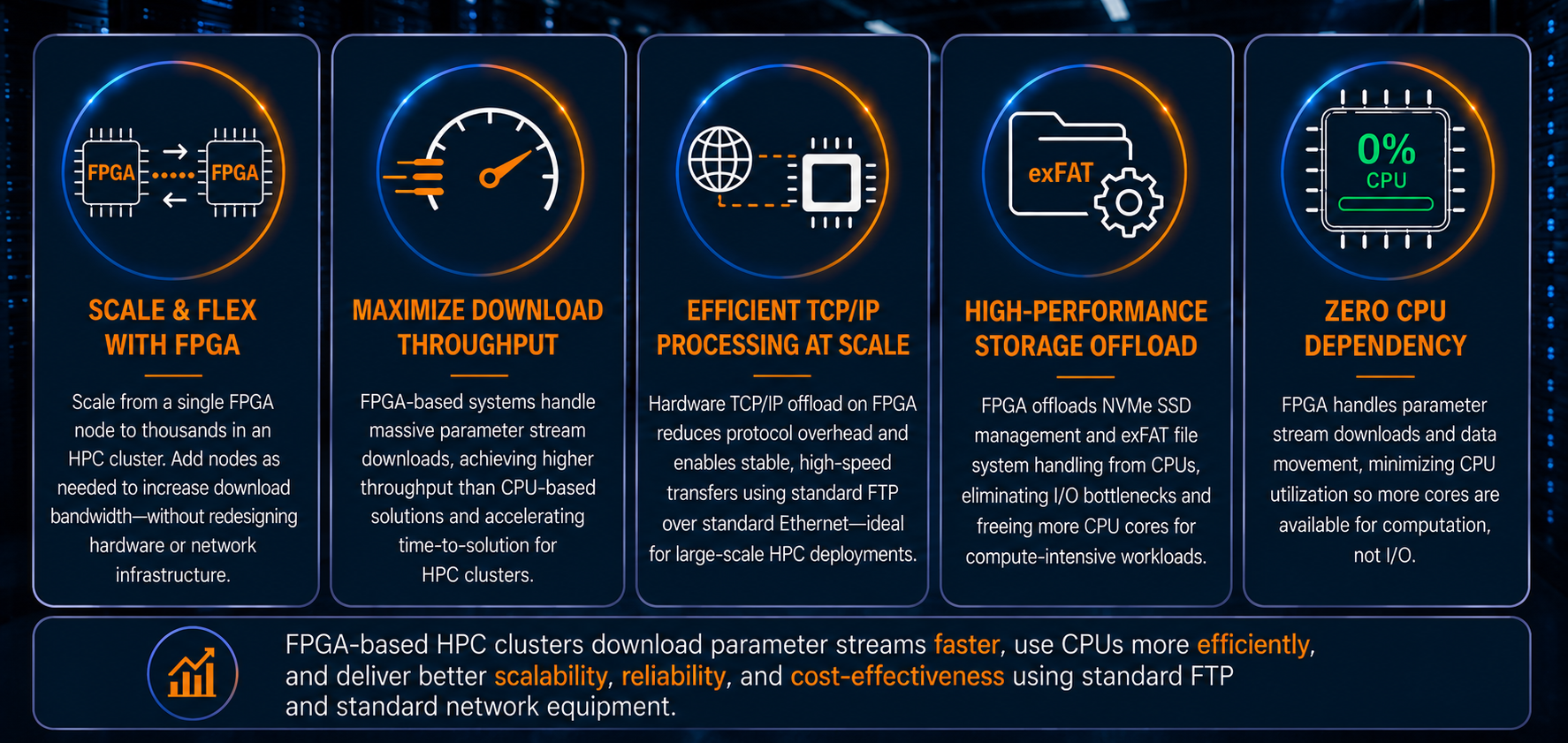

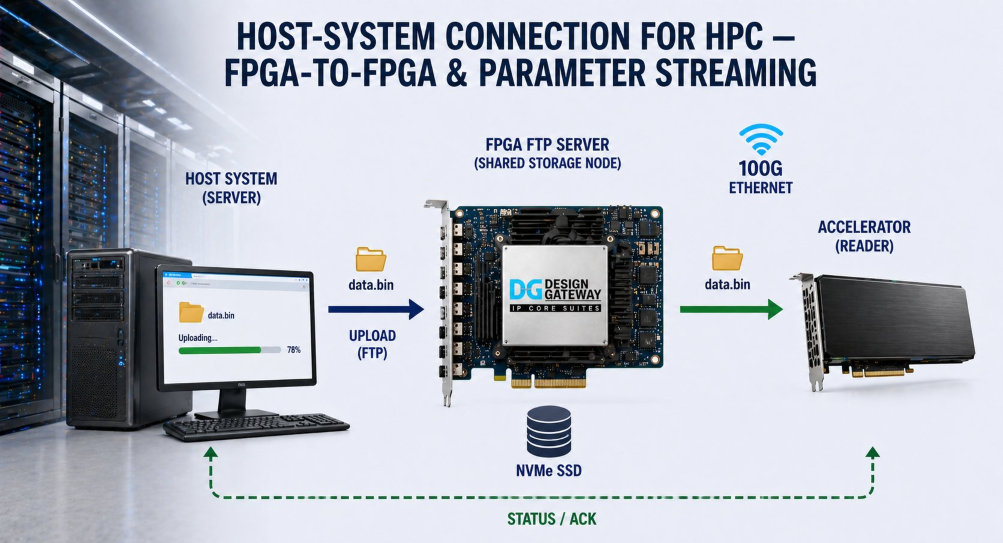

Design Gateway's FPGA IP Core Suites enable scalable HPC clusters using standard TCP/FTP over 100G Ethernet — no InfiniBand, no lossless fabric required. Parameter streams are delivered from a central server to FPGA processing nodes, with FTP used for both input stream download and output stream upload across the cluster chain.
Three Hardware Engines. One Complete Pipeline.
The solution integrates three of Design Gateway's production-proven IP cores, each handling one stage of the data path — from the 100G network interface down to physical NVMe SSD storage.
| IP Core | Function | Key Performance |
|---|---|---|
Learn more →
|
Fully hardware-implemented TCP/IP Offload Engine at 100G Ethernet line rate. Enables FTP-based download of parameter streams and input datasets from standard servers, plus upload of output streams from FPGA logic — no host OS TCP stack, no CPU cycles consumed in the data path. | 100 GbpsFull-duplex FTP |
Learn more →
|
Hardware exFAT file system controller providing simultaneous write/read access to NVMe SSD buffers. Input, parameter, checkpoint, and output files can be exchanged with standard Windows or Linux servers through common file workflows without special network fabric software. | Concurrent R/WGen4 SSD speed |
Learn more →
|
Lightweight hardware NVMe host controller interfacing directly with PCIe Gen4 SSD at full bandwidth. Provides local high-speed buffering for parameter sets, intermediate results, and output streams while FPGA logic continues processing. | ~7,000 MB/sPCIe Gen4 NVMe |
| FPGA Development Kit | AMD Versal™ AI Core Series VCK190 Evaluation Kit |
| SSD Interface Adapter |
AB18-PCIeX16
AB19-M2PCI
AB20-U2PCI
|
| SSD | NVMe Gen4 SSD |
| PC | Windows or Linux PC with FTP Client Application |
| IP Core |
muNVMe-IP (Gen4)
exFAT2-IP (Gen4)
TOE100G-IP
|
| Reference Design | FTP Server by muNVMe-IPG4 |
