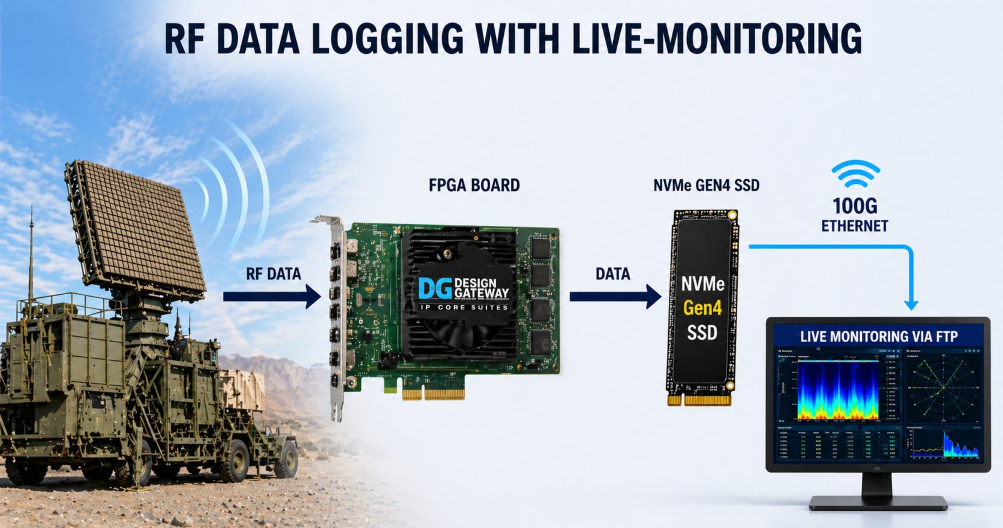

High-throughput RF signal capture and recording to NVMe Gen4 SSD via FPGA, with real-time remote monitoring over long-distance 100G Ethernet using the standard FTP / TCP-IP protocol — no specialized network hardware required.

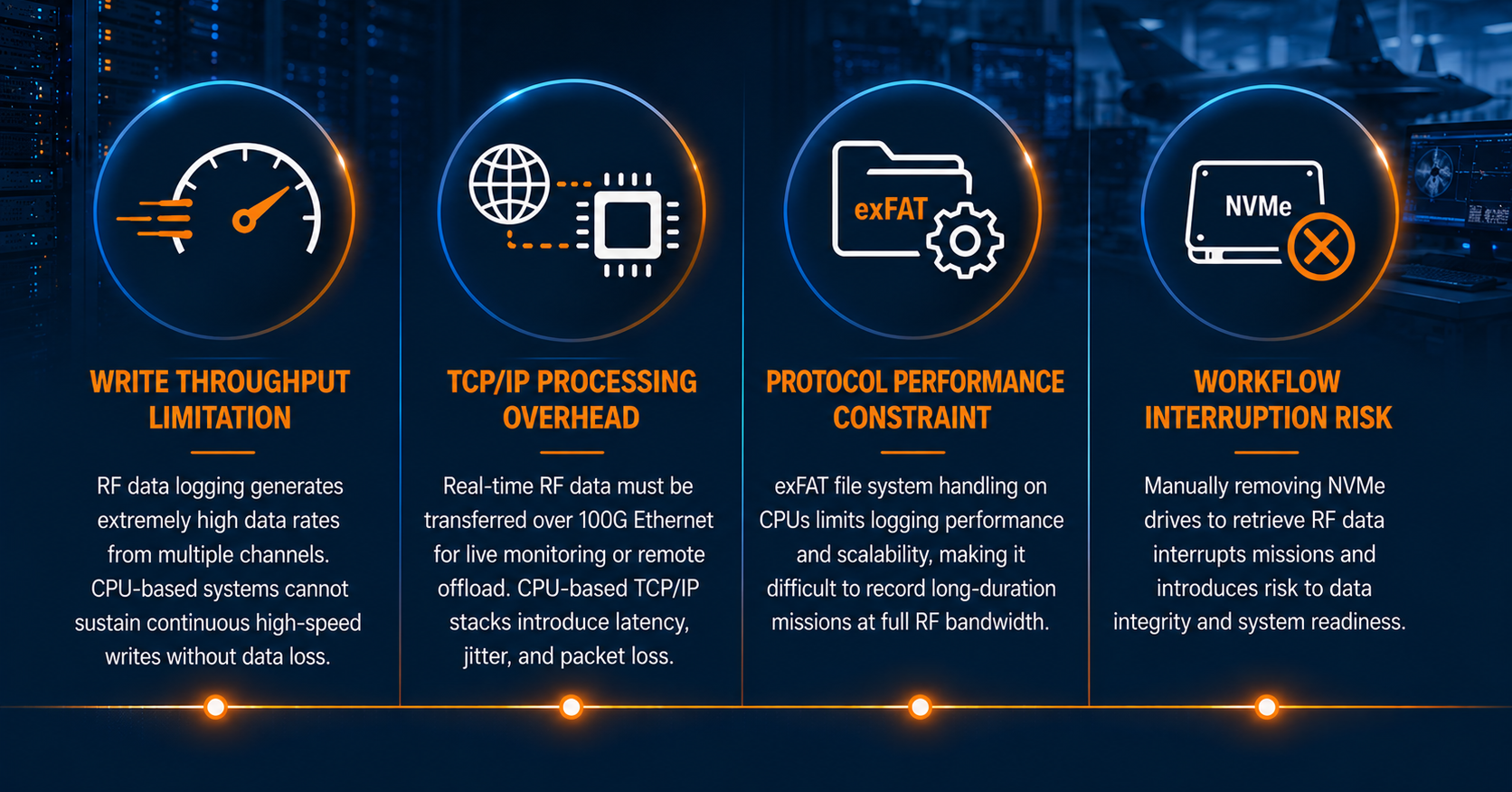

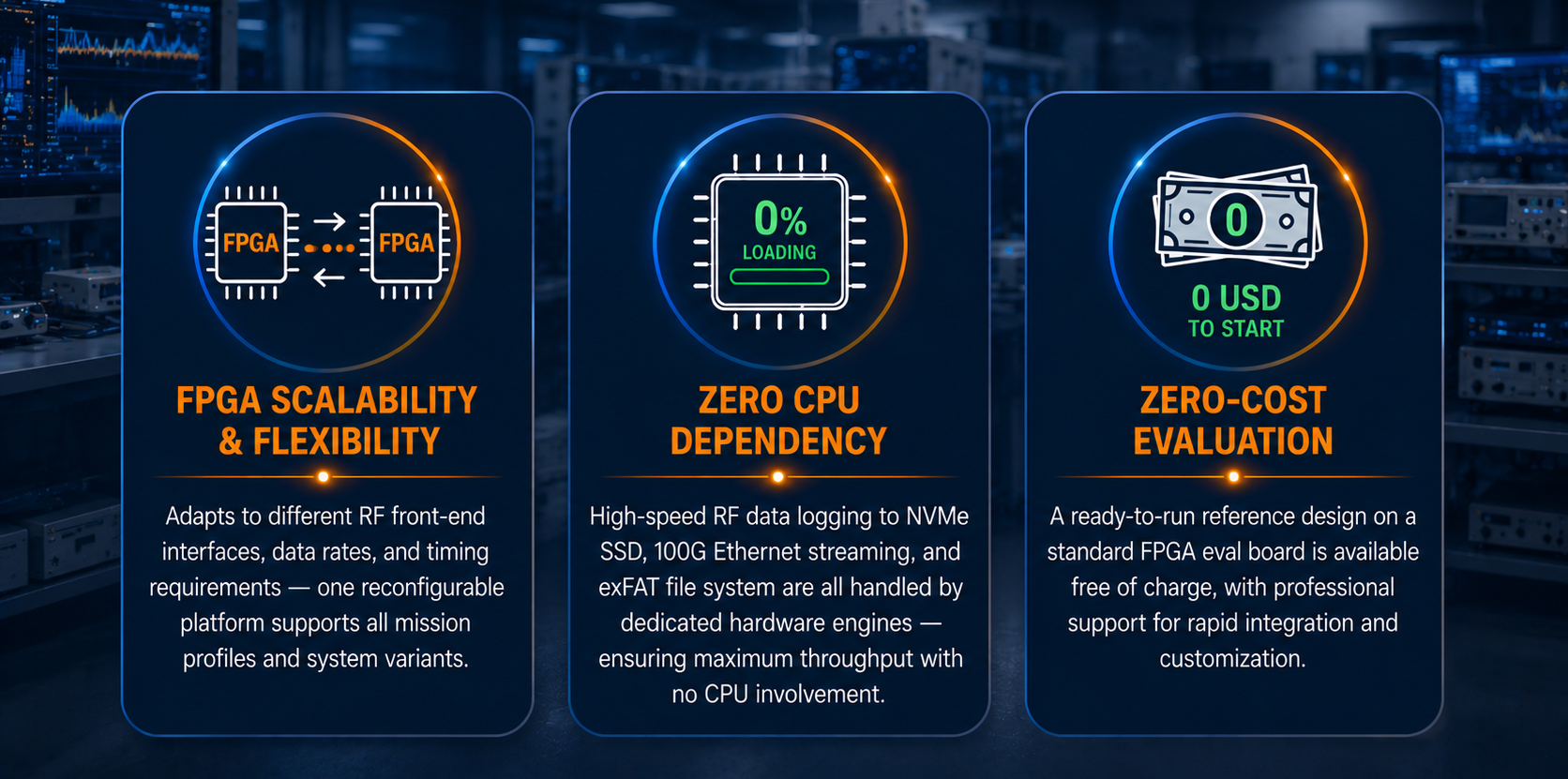

Three Hardware Engines. One Complete Pipeline.
The solution integrates three of Design Gateway's production-proven IP cores, each handling one stage of the data path — from the 100G network interface down to physical NVMe SSD storage.
| IP Core | Function | Key Performance |
|---|---|---|
Learn more →
|
Fully hardware-implemented TCP/IP Offload Engine at 100G Ethernet line rate. Enables real-time FTP streaming of captured RF signal data to remote analysis stations — handling all connection management, retransmissions, and flow control entirely in FPGA fabric with zero CPU involvement. | 100 GbpsFull-duplex FTP |
Learn more →
|
Hardware exFAT file system controller enabling simultaneous Write (continuous RF capture) and Read (live FTP transfer) access to the NVMe SSD. Recorded signal files are instantly accessible on any Windows or Linux workstation for signal intelligence analysis or SDR/EW toolchain integration — no proprietary drivers required. | Concurrent R/WGen4 SSD speed |
Learn more →
|
Lightweight hardware NVMe host controller interfacing directly with PCIe Gen4 SSD at full bandwidth. Bypasses PCIe Hard IP limitations and Linux driver overhead — sustaining write speeds matching the physical limit of modern Gen4 drives. | ~7,000 MB/sPCIe Gen4 NVMe |
| FPGA Development Kit | AMD Versal™ AI Core Series VCK190 Evaluation Kit |
| SSD Interface Adapter |
AB18-PCIeX16
AB19-M2PCI
AB20-U2PCI
|
| SSD | NVMe Gen4 SSD |
| PC | Windows or Linux PC with FTP Client Application |
| IP Core |
muNVMe-IP (Gen4)
exFAT2-IP (Gen4)
TOE100G-IP
|
| Reference Design | FTP Server by muNVMe-IPG4 |
