AHCI PCI express SSD IP corePCIeSSD Gen3 can directy connect to FPGA!!

APS-IP

AHCI PCI express SSD IP core (APS-IP) operating with Avalon-MM Hard IP for PCIe from Altera is ideal to access AHCI PCIe SSD without CPU and external memory such as DDR3 requirement. It is recommended to use in the application which require high capacity storage at very high-speed performance. Small size system can be also designed by M.2 storage which uses PCIe protocol standard. The IP core license includes the reference design for Altera FPGA boards. It helps you to reduce development time and cost.


Features

  • Implement application layer to access AHCI PCIe SSD card by using NCQ command
  • Simple user control I/F and FIFO interface for data port
  • Direct connect to Avalon-MM Hard IP for PCI Express from Altera by using 128-bit bus interface
  • Small logic utilization and no need for CPU and external memory (DDR)
  • Support three ATA commands, i.e. IDENTIFY DEVICE, WRITE FPDMA QUEUED, and READ FPDMA QUEUED
  • Reference design with AB16-PCIeXOVR adapter board available on Altera FPGA boards

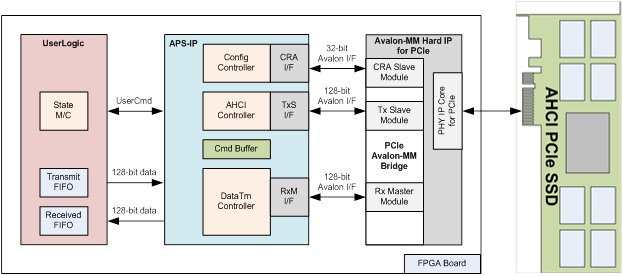

Block diagram




Document download

Common Documents

Document name Update (Revision)
AHCI PCI express SSD IP core Leaflet
APS-IP core Presentation
Rev1.1

Documents for each Device families

Document name Arria 10 SX SoC Arria-V GX Arria-V SoC
AHCI PCI express SSD IP core Datasheet
Rev1.1
Reference Design Document
Rev1.1
Demo Instruction Document
Rev1.1
Evaluation demo file
(Please ask password from Design Gateway.)
Demo Video


Inquiry/Purchase

Part Number Supported Devices
APS-IP-A10SX Arria 10 SX (SoC) Support Gen3!!
APS-IP-A5GX Arria-V GX
APS-IP-A5ST Arria-V ST (SoC)
Accessories for evaluation Description
AB16-PCIeXOVR PCIe Cross Over adapter board for Altera FPGA boards
Download manual

About price and licence of this IPcore, please see FAQ page and contact Design Gateway.

Performance

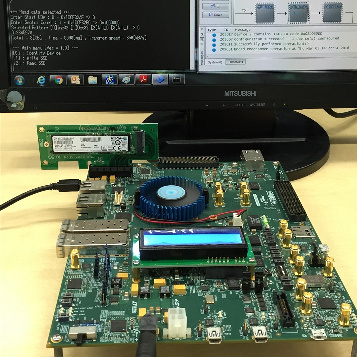

APS-IP core Evaluation is
available on ArriaV SoC Board!
By APS-IP core, the transfer speed achives ultra high-speed over 900MBites/sec !! You can evaluate the performance on Altera FPGA boards with free download bit file before purchasing.












Application example

APS-IP core is the best solution for applications which requires huge data transmission with high-speed.
Surveillance Camera Data Logger Video Editing System Medical Image Analysis Aerospace & Defense
